KWH Meter Wiring Diagrams


One of the most requested items of information that we receive is for wiring diagrams for the meters we sell.  This page contains circuit type and wiring diagrams for all the form #'s of meters, sockets and pans; with and without CT´s and PT´s, for Wye, Delta, and Network circuits.  All diagrams are presented in JPEG (.jpg) format.  Click on the type or form you need and download the jpg to your computer or printer.  After viewing or printing the wiring diagram, use the back button of your browser to return to this page.  If you have any questions concerning the diagram, please don´t hesitate to call us for clarification.


Circuit Type

IP 3W Circuit

IP 3W Circuit

3P 3W Network Circuit

3P 4W Y Circuit

3P 4W Y Circuit

Meter Type

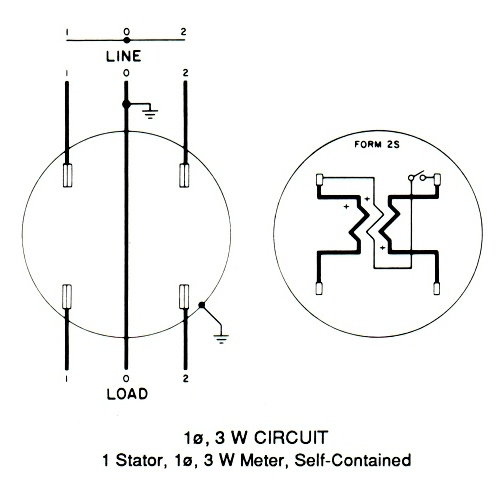

1 stator 3 Wire Socket

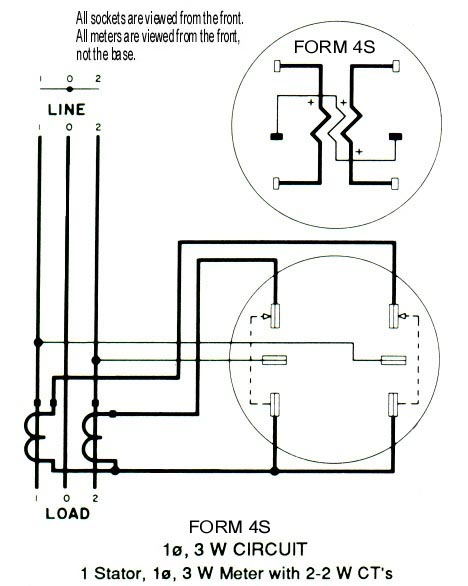

1 stator 3 Wire Socket w/2-2W CTs

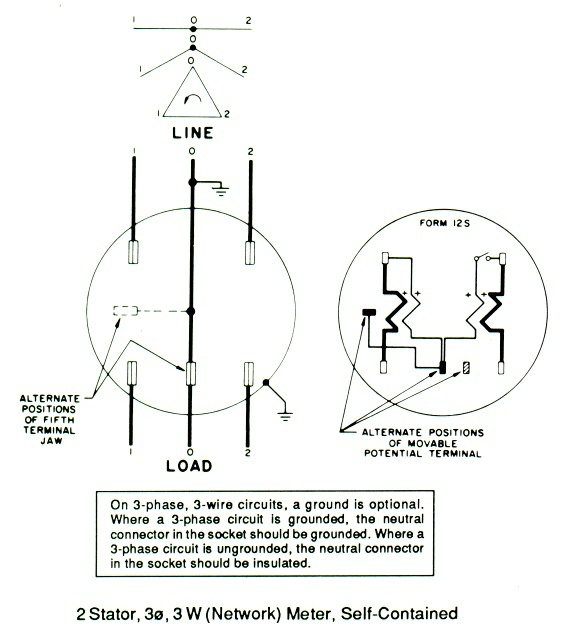

2 stator 3 Wire Network Socket

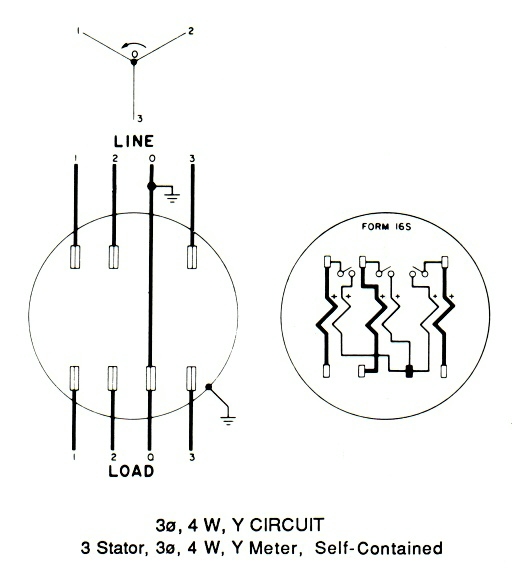

3 stator 4 Wire Y Socket

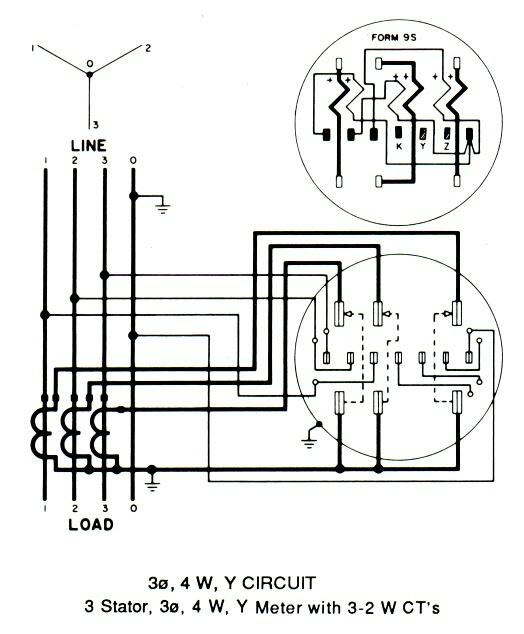

3 stator 4 Wire Y Socket w/3-2W CTs
